Manifolds



Stainless steel suspended manifolds are a versatile way of supplying energy. They are hygienically far superior to those made of plastic in food and laboratory facilities. They are stable and can be individually equipped due to the modules which can be ordered separately. All module slots on the side can also be used as distribution slots with 6 units, in which case only a single supply line is required for the sockets. The underside can also be equipped with a module, for example with lamps, compressed air safety couplings or smoke detectors, which respond more quickly when positioned above workbenches than at any other position in the room if work equipment on the workbench catches fire. The stainless steel chains are adapted to the height of the room, they offer a stable position of the suspended distributors due to the two on four chain suspension.

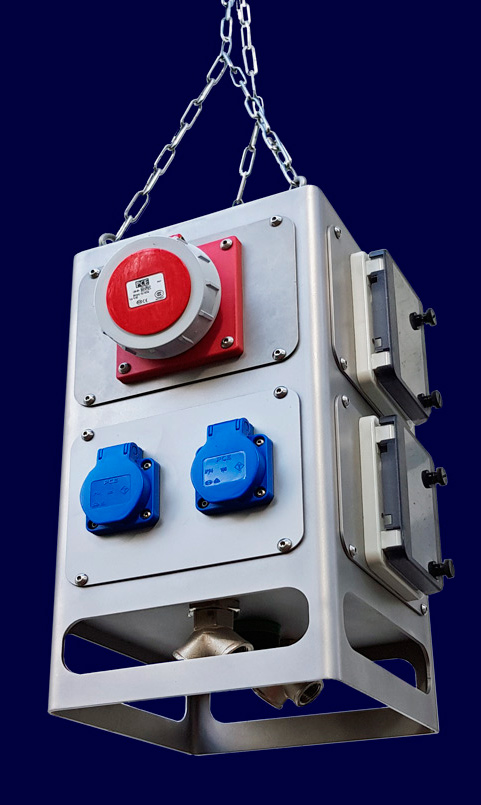

Manifold StarConnex HV200

with spaces for 4 equipment modules size M4 on the side,1 equipment module size M4 on the underside and 1 supply line module size M4 on the top.

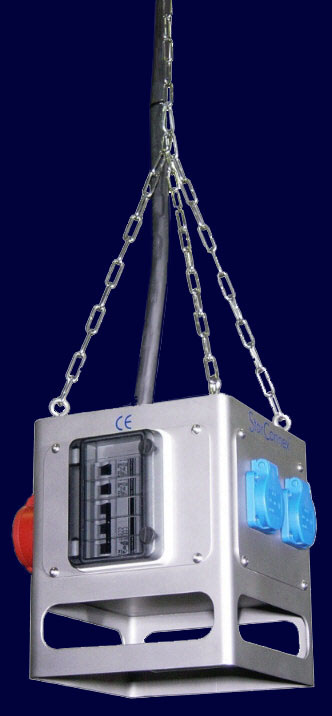

Manifold StarConnex HV200H

with spaces for 8 equipment modules size M4 on the side, 1 equipment module size M4 on the underside and 1 supply module size M4 on the top.

Do you have any questions? Please do not hesitate to contact us.
